Norseman™ Drill & Tool Logo

Hex Nut Drive Reamers

America´s Finest High–Speed Cutting Tools™

PRODUCT CATALOG >> HSS Hex Nut Reamer

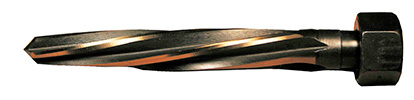

Type 52-AG HSS Hex Nut Bridge Length Reamers Spiral Flute
    Type 52-AG Bridge Length Hex Drive Reamer
    Type 53-AG Car Length Hex Drive Reamer
    Shank diameter matches socket size for bolt which will be
    driven through reamed hole.

    Designed for use in structural steel, in the building industry, bridge erection,
    and ship construction.

    The cutting end of the flutes is tapered, allowing the reamer to enter
    overlapping
    & badly misaligned holes.

    Aligning and Enlarging holes in structural steel applications.

    Gold oxide – low temperature stress relief that enhances lubricity,
    reduces friction and increases tap toughness.

    For use in rotary impact sockets.

    Proudly manufactured in the USA.

    Adobe Acrobat PDF Download: PDF




Norseman™ Drill reamers should be ran at 1/2 the R.P.M. suggested for a corresponding twist drill size.

Coolant feeding reamers: Coolant OR cutting tool lubricant induced thru the reamer should be utilized when possible. Benefits include better finishes, superior tool life and the ability to increase speeds and feeds.

All tools are constructed with left-hand spiral and right-hand cut. The left-hand spiral eliminates the tendency of the reamer to pull itself into the holes.
